The small and lightweight smartphone for lone worker protection, including an emergency call app. The perfect companion for lighter tasks.
Personen Notsignal Anlage mit Explosionsschutz
Particularly suitable for normal office tasks, even when sitting.

The mobile person emergency signal device Life Tel 5 Mini is Compared to the Life Tel 4 and 6 L, its design is significantly narrower and more compact. It is therefore suitable for applications that do not require the smartphone to be particularly durable.

For comparison:

Life Tel 4L

Dimensions: 150 mm x 79 mm x 15 mm (LxWxH)

Weight: 224 grams

Life Tel 5 Mini:

Dimensions: 119 mm x 58 mm x 12 mm (LxWxH)

Weight: 123 grams

The Life Tel 5 Mini mobile personal emergency signal device is specially developed to secure lone workers who work at individual workstations on extensive facilities. The Life Tel 5 Mini is a slim smartphone and in combination with the lone worker protection app, it is particularly suitable for lighter indoor activities. You can manage the Life Tel 5 emergency call yourself, e.g. through the doorman, your own operational security or your own control center. However, you can also make use of an external 24-hour emergency call control center. It must be able to manage and process telephone calls and SMS, as these sometimes transmit GPS coordinates.

“According to Section 25 of the Accident Prevention Regulation “Principles of Prevention” (BGV A1), taking into account operational conditions, the entrepreneur must ensure that, in the event of an emergency, the necessary assistance can be immediately called in and directed to the place of work.”—FROM BGR 139, PUBLISHER: MAIN ASSOCIATION OF COMMERCIAL PROFESSIONAL ASSOCIATIONS
Personen Notsignal Anlagen Mobi- Click
DGUV rule 112-139
Compliance with the requirements of the professional association

The Life-Tel 5 Mini outdoor smartphone person emergency signal device has been specially developed in combination with the integrated lone worker protection app to secure working alone. Lone workers usually work at dangerous individual workplaces. In accordance with the conditions and regulations of the professional association BGR 139 and the accident insurance DGUV 112-139 as well as the sole worker protection in accordance with DIN VDE V 0825-12/DIN VDE V 0825-11, the outdoor smartphone Life Tel 4 provides full and compliant protection. Entrepreneurs are required to protect such employees with personal emergency signal systems so that emergency measures can be initiated immediately in an emergency.

As a personal emergency signal device, the Life-Tel 5 Mini meets all requirements of the relevant DGUV 112-139 and, in combination with trained security personnel, serves as a full-fledged personal emergency signal system (PNA-11).

Legal bases

Working alone is unfortunately not uncommon. Thanks to extensive automation, industry as well as municipal and municipal utilities work entire night, Sunday and public holidays shifts with minimal personnel deployment. And it is expected that the number of lone workers will continue to rise. Occupational safety must therefore adapt to these sometimes completely new conditions in order to ensure the level of protection for employees working alone.

According to § 8 of the accident prevention regulation “Principles of Prevention” (BGV A1), the entrepreneur must ensure that the person working alone is monitored when working at risk. This monitoring can also be carried out, among other things, by means of personal emergency signal systems.—FROM BGR 139, PUBLISHER: MAIN ASSOCIATION OF COMMERCIAL PROFESSIONAL ASSOCIATIONS
risk assessment

Workers who work alone and suffer an accident (e.g. fall, get electrocuted or injured) or who are the victims of attacks are often not found over a longer period of time. This time can determine the health and life of those affected. According to Section 5 Occupational Health and Safety Act, the entrepreneur must determine the risks associated with working alone and assess the working conditions. Based on the assessment, appropriate measures must be taken and documented in accordance with Section 6 Occupational Health and Safety Act.

Protective measures for “hazardous work” are particularly relevant. In this context, an increased or critical risk is considered dangerous due to the work process, the type of activity, the substances used or the environment. The DGUV states: “If hazardous work is carried out by one person alone, the entrepreneur must ensure appropriate technical or organizational personal protection measures in addition to general protection measures” (Section 8 (2) DGUV Regulation 1).

With the personal emergency signal devices to be worn on the body of the person working alone, a personal alarm can be triggered in an emergency both as a function of will and independently of will in the personal emergency signal receiving center. Emergency signals are generally transmitted wirelessly [...].—FROM BGR 139, PUBLISHER: MAIN ASSOCIATION OF COMMERCIAL PROFESSIONAL ASSOCIATIONS
Life Tel 5 Mini alarm types
Willful alarm:

The red SOS button on Life-Tel 5 is used to immediately trigger an alarm by the user. After a simple push of a button, the Life-Tel immediately sends alarms to freely selectable pre-programmed numbers. The alarms are sent as SMS and/or phone calls.

Life Tel 5 Mini Alarmarten
Attitude of volitional and volitional types of alarm
Independent of will alarm/dead man circuit:

Situation alarm

The Life-Tel 5 Mini monitors the position of the device using a position sensor. If the wearer of the Life-Tel deviates from the preset position by more than 45 degrees over a defined period of time, the Life-Tel triggers a pre-alarm. If the person does not return to the set angle range within the duration of the pre-alarm (e.g. due to fainting), the Life-Tel smartphone triggers the alarm and notifies the preset phone numbers.

Ruhealarm/Totmannschaltung

With a rest alarm, the industrial smartphone monitors whether the user is moving. If it does not recognize any movement after a self-definable period of time because the person is unable to act, the Life Tel triggers a pre-alarm. This is displayed visually and acoustically. If the person does not move again within the duration of the pre-alarm and therefore does not acknowledge the alarm, the Life-Tel triggers the alarm and notifies the preset phone numbers.

Zeitalarm

When the time alarm occurs, the Life-Tel signals visually at defined times or time intervals by flashing the large keys and an acoustic signal. By pressing any key, the user acknowledges that everything is okay. If there is no confirmation, Life-Tel 5 triggers the alarm and notifies the preset phone numbers.

Life Tel function diagram
Alarm and functional diagram of the Life Tel series using the Life Tel 2-M as an example

escape alarm

With this alarm, the Life-Tel reacts to hectic movements such as those that occur during an escape. After the pre-alarm, Life-Tel 5 triggers the alarm and notifies the pre-set phone numbers.

Fall alarm

Alternative to an escape alarm — if an escape alarm is not expected at work but the risk of falls is significantly high, the alarm serves as an alternative in the event of a fall.

loss alert

If the device is lost or removed from the arm holder, the Life-Tel also triggers an alarm.

Technical alarm

To monitor functionality and readiness for use, the Life-Tel is equipped with several technical alarm functions. The battery capacity, GSM reception, GPS reception and the functionality of the sensors are checked. If a limit is exceeded or a sensor malfunction occurs, a technical alarm is triggered and Life-Tel 5 notifies the preset phone numbers via SMS and/or call.

24 hour service/ emergency call center

Define who is notified when and with what information. Here you can manage the emergency call yourself or you can use the 24-hour service of one of our certified cooperation partner in claim.

Free support/ free maintenance

Choose from our offer and enjoy the services that are included in it. You pay no further costs, neither for maintenance nor for our support.

Notes and overview

Phone function

The Life-Tel 5 Mini can be used like a conventional mobile phone at any time.

Alarm functions can be combined individually

Each individual alarm function can be activated individually and the sensitivity can be adjusted. All alarm functions can also be combined as required, so that you can adapt the Life-Tel 5 to your individual needs and special circumstances.

Safety-related information

For optimal monitoring of the person, the alarm messages must be received without downtime by a trained person or an alarm center.

The Life Tel 5 was designed with a high waterproof IP protection class - IP68. It therefore has a good dust-proof ability, so that no dirt gets into the interior of the housing, even when the environment is bad.

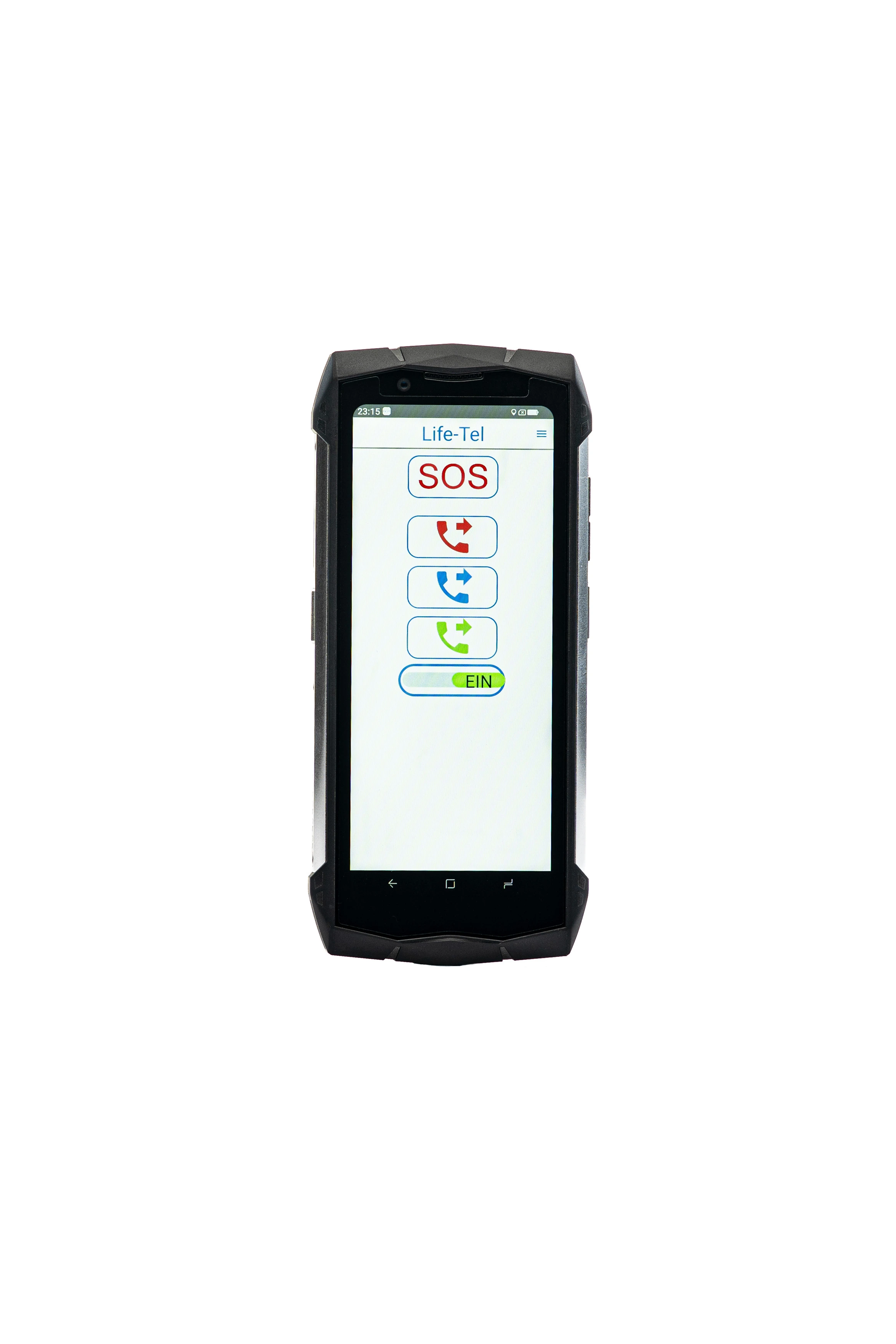

Life Tel 5 Mini - Personen Notsignal GerätLife Tel 5 Mini - RückenLife Tel 5 Mini - Seite

functions



Life Tel 4L


933€

incl. 19% tax

Offer (until 31.10)
Life Tel 6L
630.40€
788€
incl. 19% tax

Life Tel 5 Mini

834€

incl. 19% tax
pic
Personen Notsignal Gerät als Smartphone mit Alleinarbeiter AppPersonen Notsignal Gerät als Smartphone mit Notruf AppLife Tel 5 Mini - Personen Notsignal Gerät
Protection standard IP 68
Alleinarbeit ChecklisteIconAlleinarbeit Checkliste
NFC
Alleinarbeit ChecklisteIconIcon
front camera
5 MP
5 MP
8 MP
rear camera
13 MP
13 MP
13 MP
CPU
8 x ARM Cortex-A53 2.5GHz
4 x MediaTek Helio A22 MT6761 2.00GHz
4x Cortex-A53 CPU 2GHz, PowerVR GE8320 Chipset (GPU)
screen size
5.5 inches
6.5 inches
4 inches
operating system
Android 12
Android 12
Android 11
measures
158x77.5x14mm
165 x 78 x 9.5 mm
119x58x12mm
weight
235g
207 g
123 g
weight
Alleinarbeit ChecklisteAlleinarbeit ChecklisteAlleinarbeit Checkliste
rear camera
Alleinarbeit ChecklisteAlleinarbeit ChecklisteAlleinarbeit Checkliste
Quiet alarm/ dead man circuit
Alleinarbeit ChecklisteAlleinarbeit ChecklisteAlleinarbeit Checkliste
Time alarm/ support function
Alleinarbeit ChecklisteAlleinarbeit ChecklisteAlleinarbeit Checkliste
Position alarm/ inclination sensor
Alleinarbeit ChecklisteAlleinarbeit ChecklisteAlleinarbeit Checkliste
Fall alarm
Alleinarbeit ChecklisteAlleinarbeit ChecklisteAlleinarbeit Checkliste
escape alarm
Alleinarbeit ChecklisteAlleinarbeit ChecklisteAlleinarbeit Checkliste
loss alert
Alleinarbeit ChecklisteAlleinarbeit ChecklisteAlleinarbeit Checkliste
Technical alarm
Alleinarbeit ChecklisteAlleinarbeit ChecklisteAlleinarbeit Checkliste
Complies with the guidelines of the professional association
Alleinarbeit ChecklisteAlleinarbeit ChecklisteAlleinarbeit Checkliste
remote maintenance
Alleinarbeit ChecklisteAlleinarbeit ChecklisteAlleinarbeit Checkliste
Lone worker app
Alleinarbeit ChecklisteAlleinarbeit ChecklisteAlleinarbeit Checkliste
GPS zone alarm
Alleinarbeit ChecklisteAlleinarbeit ChecklisteAlleinarbeit Checkliste
GPS location
Alleinarbeit ChecklisteAlleinarbeit ChecklisteAlleinarbeit Checkliste
WiFi calls
Alleinarbeit ChecklisteAlleinarbeit ChecklisteAlleinarbeit Checkliste
4G
Alleinarbeit ChecklisteAlleinarbeit ChecklisteAlleinarbeit Checkliste
battery capacity
5000 mAh
5150 mAh
2000 mAh
USB charging
Micro-USB
USB Type-C
USB Type-C
bluetooth
Alleinarbeit ChecklisteAlleinarbeit ChecklisteAlleinarbeit Checkliste
area
Indoor/outdoor
Indoor/outdoor
Indoor
